Whatley Elysee Brass Full Depth Radiant Gas Fire
In stock
Item No:
SF1-217-000
From
£209.00
- 3.5kW Direct Output
- Open Fronted Gas Fire
- 3 Year Guarantee
Extras
-
Extended Guarantee (3YR to 5YR)- Extended Guarantee (3 Year to 5 Year)
- Peace of mind against expensive repair bills
- Quality approved and reliable repair
- Protection for your new fire/s for up to 5 years
- Includes genuine Superior Fires parts
- Approved Gas Safe engineer
£50.00

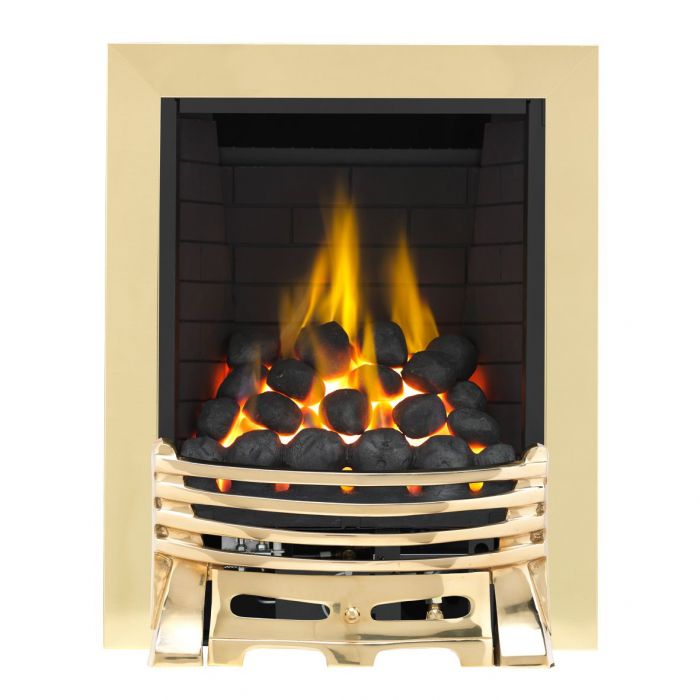

The Elysee fret is a modern cast design with horizontal curved bars. It has a slightly bowed profile with wider tapering feet detail which deliberately reduces the size of the ashpan making it a less prominent feature of this design. The ashpan is a separate component and provides access, if applicable, to the controls (model dependent). The Elysee fret is available in: brass (solid brass), brass & black (solid brass), chrome (chrome plated brass), chrome & black (lightweight aluminium), black (lightweight aluminium). The Elysee fret is designed to free stand in front of the fire and frame. The one-piece frame is held in position with magnets (supplied) and depending on the model is available in: brass effect, chrome effect or black.
| Model Identifier | Conventional Full Depth Inset Radiant Heater Gas Category/Pressure = I2H(20) |
|---|---|
| Heat Input Gross (High) | 6.8kW |
| Heat Input Gross (Low) | 3.5kW |
| Heat Output Gross (High) | 3.8kW |
| Heat Output Gross (Low) | 1.9kW |
| Direct Heat Output | 3.5kW |
| Heat Type | Radiant Heat |
| Chimney Flue Compatibility | Pre-Cast (Minimum Size 12,500mm²), Pre-Fabricated - Class 2 (127mm/5" Diameter), Conventional Chimney - Class 1 (178mm/7" Diameter or Greater) |
| Control Ignition | Battery-Free Piezo Spark Ignition (Manual - Rotary Control), Battery Spark Ignition (Manual - Fingerslide Control), Battery Spark Ignition (Remote Control) |
| Control Location | Low Level - Front - Behind Ash Pan (Manual - Rotary Control), High Level - Right - Side (Manual - Fingerslide Control), Handset (Remote Control) |
| Air Vent Required | Not Required |
| Manufacturer Guarantee | 3 Years |
| Safety Features | Flame & Oxygen Monitoring Device |
| Installation Requirement | Gas Safe Registered Installer (Bord Gais - ROI) |
| Installation Information | As with any open fire, a fire guard complying with BS 8423 must be used. Fire guards are intended to protect people from falling into a fire, prevent burns and reduce the risk of injury, particularly to young children and the infirm. In addition it is intended to reduce the risk of fire resulting from clothing and/or other flammable materials coming into contact with, or in proximity to, burning fuel and/or hot surfaces. |
| Fuel Type | Natural Gas |
| Fire Type | Open Fronted |
| Installation Type | Inset |
| Engine Type | Full Depth Radiant |
| Width Outline A | 480mm |
| Height Outline B | 595mm |
| Depth Outline C | 180mm |
| Rear Width Min D1 | 245mm |
| Rear Width Max D2 | 375mm |
| Rear Height E | 545mm |
| Opening Width Min X1 | 375mm |
| Opening Width Max X2 | 450mm |
| Opening Height Min Y1 | 540mm |
| Opening Height Max Y2 | 575mm |
| Opening Depth Min Z | 200mm |
| Packaging Width | 575mm |
| Packaging Height | 670mm |
| Packaging Depth | 360mm |
| Packaging Weight | 11.5kg |
| Rebate Depth | 180mm |
