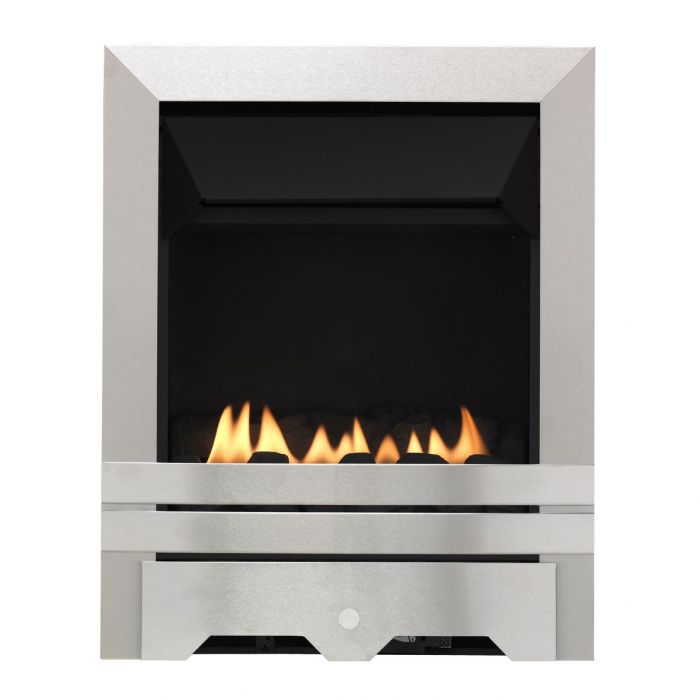

Westbury Kinloch Brushed Steel Flueless Gas Fire
In stock
Item No:
SF2-219-001
Gas Fire (High Efficiency)
This fire is a high efficiency glass fronted gas fire. It has an efficiency rating of 90% - 100% depending upon the model chosen. High efficiency gas fires are kinder to the environment as you are not wasting as much energy. They are also help to significantly reduce running costs.
No Chimney or Flue Required
This fire doesn not require a chimney or flue to operate. We have a wide choice of flueless gas fires or electric fires for you to choose from.
Gas Safe Register
This fire must be installed and been serviced annually by a Gas Safe registered installer. For more information about Gas Safe please go to www.gassaferegister.co.uk
Air Vent Required
This fire requires a minimum of 100 cm² purpose provided ventilation. For further information on our approved range of air vents please see our Air Vent Core 100 and Air Vent Century 100 products.
Min Room Size (27m³)
This fire requires the room size to be a minimum of 27m³. To calculate your room size in metres simply multiply the length, by the width, by the height. Calculation of room size (m³) = L x W x H (metres)
Guarantee (3 Years)
This product has a 3 year manufacture guarantee. Please see the terms and conditions of your gurantee in the gurantee section.
Manual - Rotary Control
This fire is available in manual - rotary control. It incorporates a piezo spark ignition which doesn't require a battery and allows you to operate the fire from LOW to HIGH and turn the fire ON/OFF. The rotary control is located at the bottom of the fire, behind the decorative fret (ashpan).
PI27 Flueless Inset Fire Energy Efficiency
£519.00
- 2.3kW Heat Output (Gross)
- Glass Fronted - High Efficiency
- 3 Year Guarantee
Extras
-
Extended Guarantee (3YR to 5YR)- Extended Guarantee (3 Year to 5 Year)
- Peace of mind against expensive repair bills
- Quality approved and reliable repair
- Protection for your new fire/s for up to 5 years
- Includes genuine Superior Fires parts
- Approved Gas Safe engineer
£50.00 -
Air Vent Century 100- 100cm² Ventilation
- Approved For Superior Fires Flueless Fires
- Draught Reducing Vent
£49.00 -
Air Vent Core 100- 100cm² Ventilation
- Approved For Superior Fires Flueless Fires
- Easy Installation - 5" Core Drill
£38.00
Westbury Flueless Inset Gas Fire
- No chimney or flue required - simplified installation
- No heat lost up the chimney
- 2.3kW heat output, designed for small to medium sized rooms
- Glass fronted with modern flame picture
- OVERVIEW: The perfect choice when you don't have a chimney or flue but want an inset gas fire with real gas flame
The Westbury flueless inset gas fire is based upon a traditional inset gas fire but due to its innovative catalytic flueless technology doesn't require a chimney or flue. It features all the benefits of flueless catalytic technology; 100% efficiency, reduced running costs, simple installation, realistic coal fuel bed and an ultra clean burning ribbon burner. Being flueless all the of the 2.3kW heat output is distributed into the room with no loss up the chimney unlike a conventional gas fire.
A 43mm spacer frame is fitted as standard to minimise fitting depth (92mm + 20mm clearance) however, for a true flat wall fix to a non-combustible wall/backpanel then the 43mm spacer can be removed and an optional 155mm spacer frame purchased.
The only considerations when installing this appliance are a minimum room size of 27m³, an accessible 8mm gas supply and 100cm² purpose provided ventilation.
This fire is available in Manual (Rotary) with coal fuel bed only. There is no requirement for mains power supply or battery for ignition.
The Kinloch is a very popular contemporary frame finished in cool brushed stainless steel. Installed with a modern fireplace the Kinloch can really help transform the look and feel of your living room. The Kinloch comprises of a one piece frame with two horizontal curved bars and a freestanding ashpan. The frame is held in position with magnets (supplied). Designed with affordability in mind the Kinloch is supplied as a self assembly kit to reduce costs. Please note careful attention is required to assemble the frame. The curved bars and ashpan are pre-rolled and as a result of packaging and transit may require slight adjustment to the curvature at the assembly stage.
Please note the price is dependent upon the final configuration. Natural gas only.
This information is intended for guidance only. Superior Fires recommends booking a Home Survey to determine the actual chimney or flue specification.
| Model Identifier | PI27 Flueless Gas Fire Gas Category/Pressure = I2H(20) |
|---|---|
| Heat Input Gross (High) | 2.3kW |
| Heat Input Gross (Low) | 1.3kW |
| Heat Output Gross (High) | 2.3kW |
| Heat Output Gross (Low) | 1.3kW |
| Energy Efficiency Class | A |
| Direct Heat Output | 2.1kW |
| Heat Type | Radiant & Convected Heat |
| Chimney Flue Compatibility | No Chimney or Flue Required |
| Control Ignition | Battery-Free Piezo Spark Ignition (Manual - Rotary Control) |
| Control Location | Low Level - Front - Behind Ash Pan (Manual - Rotary Control) |
| Engine Model | Flueless PI27 |
| Manufacturer Guarantee | 3 Years |
| Min. Room Size Required | 27m³ |
| Safety Features | Flame & Oxygen Monitoring Device |
| Installation Requirement | Gas Safe Registered Installer (Bord Gais - ROI) |
| Installation Information | As with any open fire, a fire guard complying with BS 8423 must be used. Fire guards are intended to protect people from falling into a fire, prevent burns and reduce the risk of injury, particularly to young children and the infirm. In addition it is intended to reduce the risk of fire resulting from clothing and/or other flammable materials coming into contact with, or in proximity to, burning fuel and/or hot surfaces. |
| Colour | Brushed Steel |
| Control Type | Manual - Rotary Control |
| Fuel Type | Natural Gas |
| Fire Type | Glass Fronted - High Efficiency |
| Installation Type | Inset |
| Engine Type | Flueless |
| Width Outline A | 495mm |
| Height Outline B | 620mm |
| Depth Outline C | 92mm |
| Rear Width Min D1 | 405mm |
| Rear Width Max D2 | 405mm |
| Rear Height E | 555mm |
| Opening Width Min X1 | 410mm |
| Opening Width Max X2 | 425mm |
| Opening Height Min Y1 | 555mm |
| Opening Height Max Y2 | 570mm |
| Opening Depth Min Z | 112mm |
| Packaging Width | 575mm |
| Packaging Height | 670mm |
| Packaging Depth | 360mm |
| Packaging Weight | 19.5kg |
| Rebate Depth | 92mm |
